V2000W Ultraviolet series
V2000W Ultraviolet series
1. It can receive PLT files (PLT for high-speed marking format, can greatly improve marking speed, other formats will reduce marking speed).

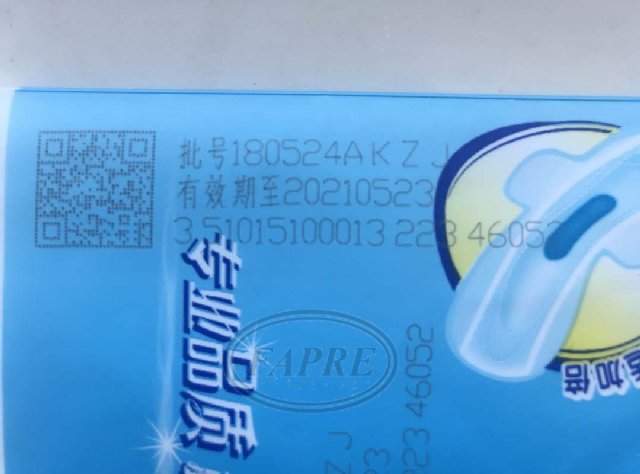

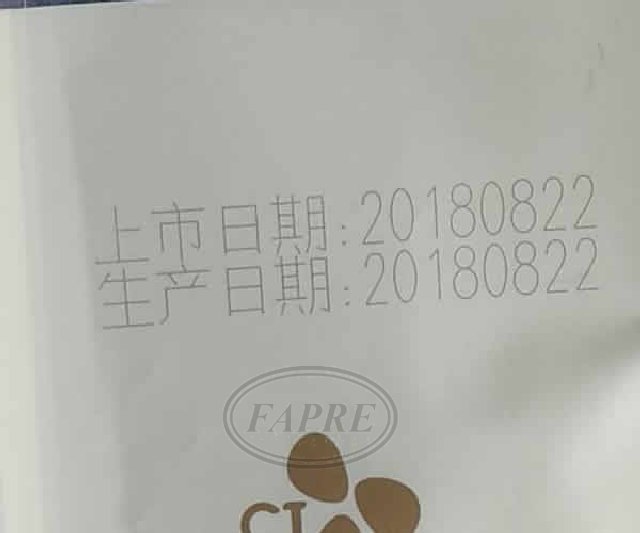

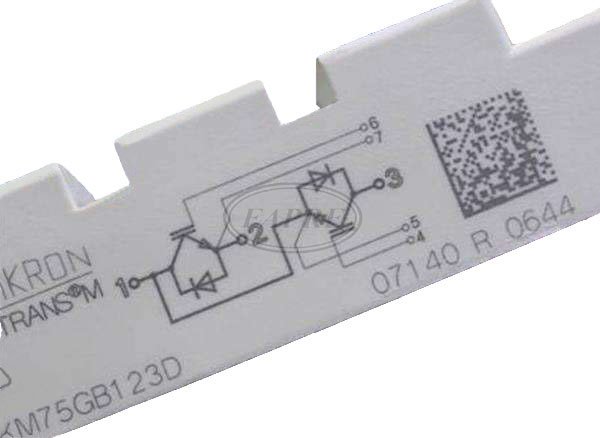

2. Automatically generate various serial numbers, production date, one-dimensional code, two-dimensional code.
3. Support flying marking.
4. Support rotation marking.
5. Support large area XY platform automatic segmentation and marking.
6. High stability laser output, high monopulse energy, high marking efficiency, short pulse setup time, maintenance-free operation.
Laser machine type | V2000W-3W | V2000W-5W | V2000W-12W |
wavelength | 355nm | 355nm | 532nm |
output power | >3W@50kHz | >5W@50kHz | >7W@50kHz |
Monopulse energy | >75μJ@40kHz | >125μJ@40kHz | >140μJ@50kHz |
Repetition frequency | 20kHz-200kHz | 20kHz-200kHz | 20kHz-200kHz |
pulse width | <22ns@40kHz | <18ns@50kHz | <22ns@50kHz |
Power stability | ≤3% rms | ≤3% rms | ≤3% rms |
Pulse stability | ≤3% rms | ≤3% rms | ≤3% rms |
Spatial pattern | TEM00(M2≤1.2) | TEM00(M2≤1.2) | TEM00(M2≤1.2) |
Beam diameter | ≤10mm | ≤10mm | ≤2mm |
Spot divergence angle | ≤2mrad | ≤2mrad | ≤2mrad |
Beam directivity | <25μrad | <25μrad | <25μrad |
Roundness of light spot | ≥90% | ≥90% | ≥90% |
Polarization ratio | Horizontal,>100:1 | Horizontal,>100:1 | Vertical,>100:1 |
Working substance | Nd:YVO4 | Nd:YVO4 | Nd:YVO4 |
Start time | <15min | <15min | <15min |
working temperature | 10-35℃ | 10-35℃ | 10-35℃ |
Working humidity | <65% | <65% | <65% |
Cooling mode | Water | Water | Water |
Voltage | 110/220V,50/60Hz | 110/220V,50/60Hz | 110/220V,50/60Hz |
Power waste | 600W | 600W | 600W |
Security level | Class 4 | Class 4 | Class 4 |
Laser head size | 500×185×147 mm3 | 500×185×147 mm3 | 517.5×185×84 mm3 |
