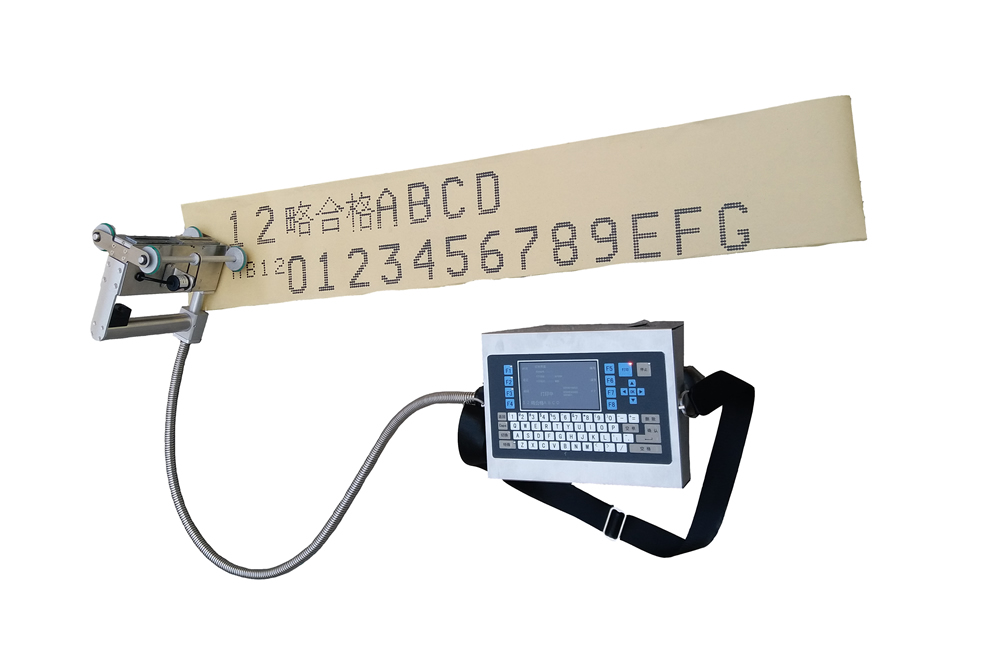

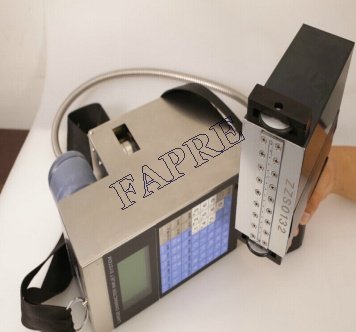

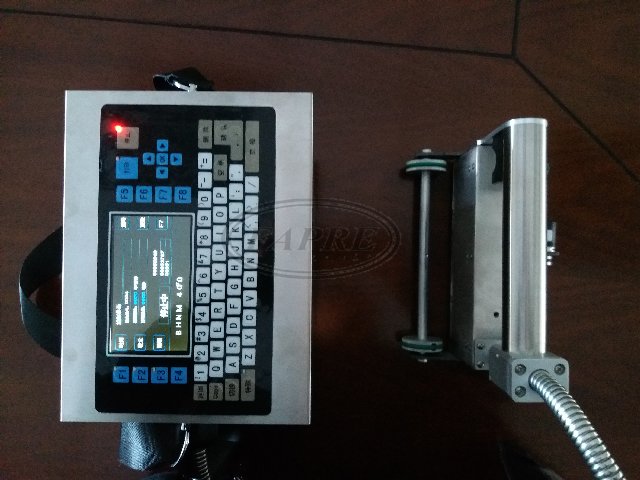

V632H

Basic configuration

5x5, 7x5, 16x16, 32x32 array nozzles or up to 12 nozzle combinations, word
height optional 10mm, 14.4mm,21mm, 25mm, 27mm, 30mm, 36mm, 40mm,
50mm, 60mm, 72mm, 90mm,100mm, 124mm typeface can be sprayed with
single line Chinese characters, numbers, English, It can spray single line Chinese characters, numbers and English, and double line numbers and English. The
whole machine is modular design without external air source.

Software Functions

All Chinese Operating System, WYSIWYG Spray Printing, Built-in National
Standard Chinese Character Library, No-duplicate Code Input, Users can edit
it as needed Graphics, real-time date printing, product counting, shift, random
code, sensor control jet printing, automatic jet printing, adjustable information
width, jet printing Optional direction, automatic cleaning function, adjustable
printing speed.

Storage capacity

88 standard information, each can store 16 lattice characters 30, 3 extended information, each can store 16 lattice characters 180.

Printing speed

0.5 m / min - 60 m / min

Voltage

220V, 50Hz

printing materials

permeability and non permeability

printing distance

the standard printing distance is <5MM, and the longest distance can reach 50MM.
